Can-Am X3-17-THUNDER6 Audio System Kit
Can-Am X3-17-THUNDER6 Audio System Kit
X3-17-THUNDER6 OVERVIEW
The X3-17-THUNDER6 audio kit is a complete plug and play 6-speaker audio system designed for select Can Am Maverick X3 vehicles. The heart of this system is the MTX AWMC3 media receiver that mounts on the top center dash using the included custom dash kit. The package includes a set of our lower X3-17-FS-L front speaker pods designed to install easily using our Fully Adjustable, Single Tool (F.A.S.T.) mounting system and feature integrated RGB. Also included is a set of our upper X3-17-FS-U speaker pods that mount to the existing factory dash panels and were built with our Rider Aligned Acoustical Design (R.A.A.D.) to deliver more sound to the riders position than any other on the market. Bass is handled by a pair of our X3-17-SW-D/P sub enclosures featuring an industry first 12-inch woofer design. These low profile, high output enclosures are down firing, mount under the seats and do not interfere with seat travel or height position for factory or aftermarket seats. System power comes from a combination of our MUD100.4 4-channel and MUD600-1 mono block amplifiers delivering 1000 watts of output power. The entire system features integrated wiring harnesses with integrated waterproof connections in a plug and play design.
Model | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 |
X3 Turbo / X3 Max Turbo | Yes |
Yes | Yes | |||
X3 Turbo R / X3 Max Turbo R | Yes | Yes | Yes | |||
X3 DS Turbo / X3 Max DS Turbo | Yes | Yes | ||||
X3 DS Turbo R / X3 Max DS Turbo R | Yes | Yes | Yes | Yes | ||
X3 DS Turbo RR / X3 Max DS Turbo RR | Yes | Yes | Yes | |||
X3 RS Turbo R / X3 Max RS Turbo R | Yes | Yes | ||||
X3 RS Turbo RR / X3 Max RS Turbo RR | Yes | Yes | Yes | Yes | ||
X3 X DS Turbo | Yes | |||||
X3 X DS Turbo R / X3 Max X DS Turbo R | Yes | Yes | Yes | Yes | ||
X3 X DS Turbo RR / X3 Max X DS Turbo RR | Yes | Yes | Yes | |||
X3 X MR Turbo | Yes | Yes | Yes | Yes | ||
X3 X MR Turbo R | Yes | Yes | ||||
X3 X MR Turbo RR / X3 Max X MR Turbo RR | Yes | Yes | Yes | |||
X3 X RC Turbo | Yes | Yes | Yes | Yes | ||
X3 X RC Turbo RR | Yes | Yes | Yes | |||
X3 X RS Turbo R / X3 Max X RS Turbo R | Yes | Yes | Yes | Yes | ||
X3 X RS Turbo RR / X3 Max X RS Turbo RR | Yes | Yes | Yes |
AWMC3* Key Features
- 3" Full Color TFT Display
- SiriusXM Radio Ready**
- AM / FM / WB Tuner
- Bluetooth Audio Streaming
- Internal Power Amplifier
- Weather Resistant (IP66)
- 2 Sets of Preouts (Front / Rear)
- Selectable EQ
- Backlit Control Buttons
- **SiriusXM antenna/receiver and external AM/FM antenna not included.

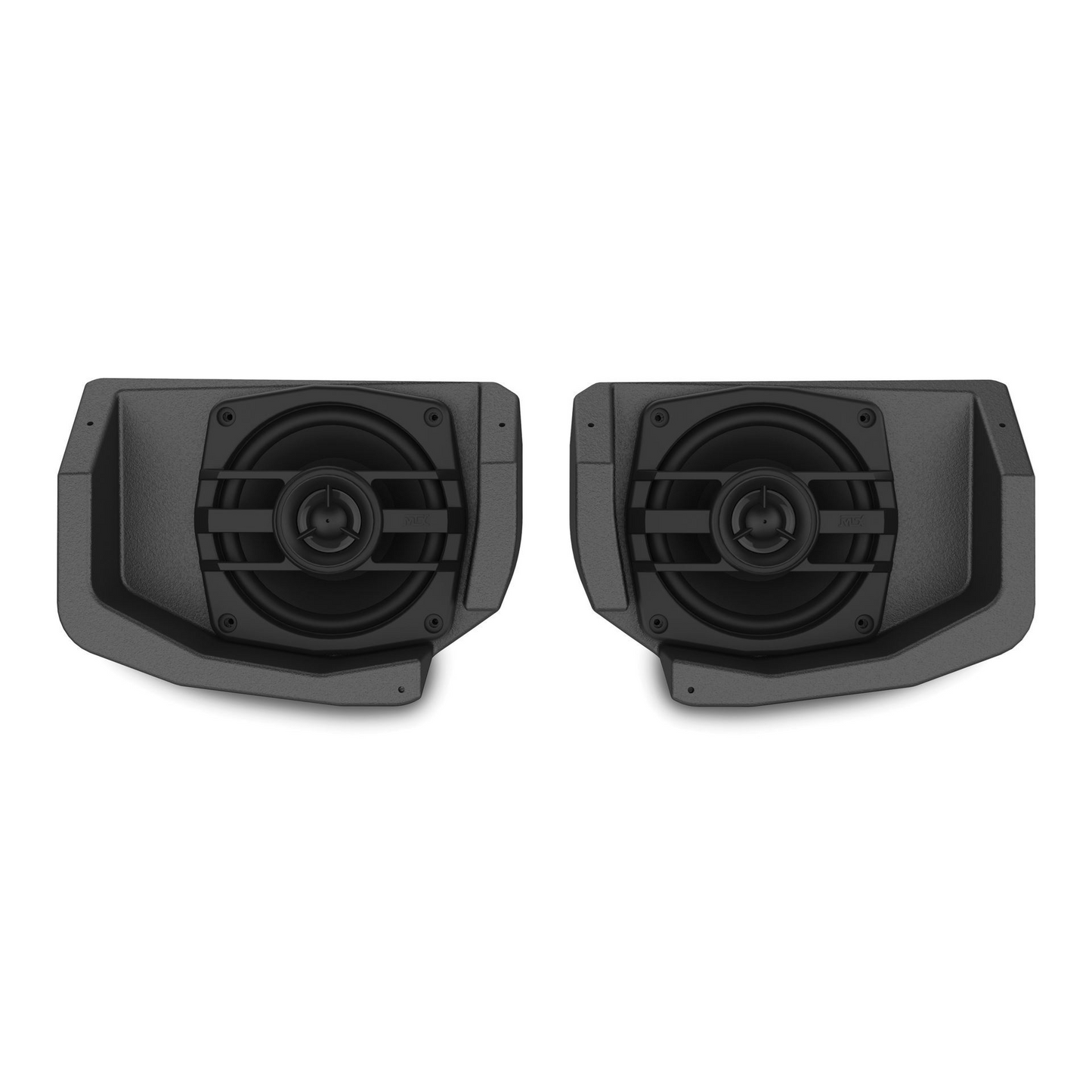

X3-17-FS-L Key Features
- All-Weather Construction with UV Inhibitor
- Custom Fit for X3 Kick Panel
- 6.5" Coaxial Speaker
- 50-Watt RMS Power
- Integrated RGB Lighting
- Custom Mounting Bracket with Fully Adjustable, Single Tool (F.A.S.T.) Technology for Easy Installation
X3-17-FS-U Key Features
- All-Weather Construction with UV Inhibitor
- Custom Fit for X3 Dash Panel
- No Cutting Required
- 4" Coaxial Speaker
- 50-Watt RMS Power
- Quick Mount Design with Rider Aligned Acoustical Design (R.A.A.D.) for optimum sound
MUD100-4 Key Features
- Compact Design Enables Installation Anywhere
- Conformal Coated Printed Circuit Board that Resists Moisture
- Fixed Crossovers
- High and Low Level Inputs
- 400-Watts RMS Power
X3-17-SW-D/X3-17-SW-P Key Features
- Industry First 12" Custom Fit Subwoofer Enclosure
- 300-Watt RMS Power per Enclosure
- Sealed Waterproof Underseat Design
- One Tool Installation System (O.T.I.S.) Reduces Installation Time
- Mounts Beneath the Driver/ Passenger Seats
- Does not Interfere With Seat Position or Height
MUD600-1 Key Features
- High Efficiency Class D Topology
- Compact Design Enables Installation Anywhere
- Conformal Coated Printed Circuit Board that Resists Moisture
- Fixed Crossovers
- High and Low Level Inputs
- 600-Watts RMS Power
Plug and Play Connections
The X3-17-THUNDER6 includes all the wiring required to connect each component. All wiring is ruggedly designed to endure the harsh environments X3s often find themselves in. All wires are terminated with the appropriate plug for the component being connected, making installation easy.
