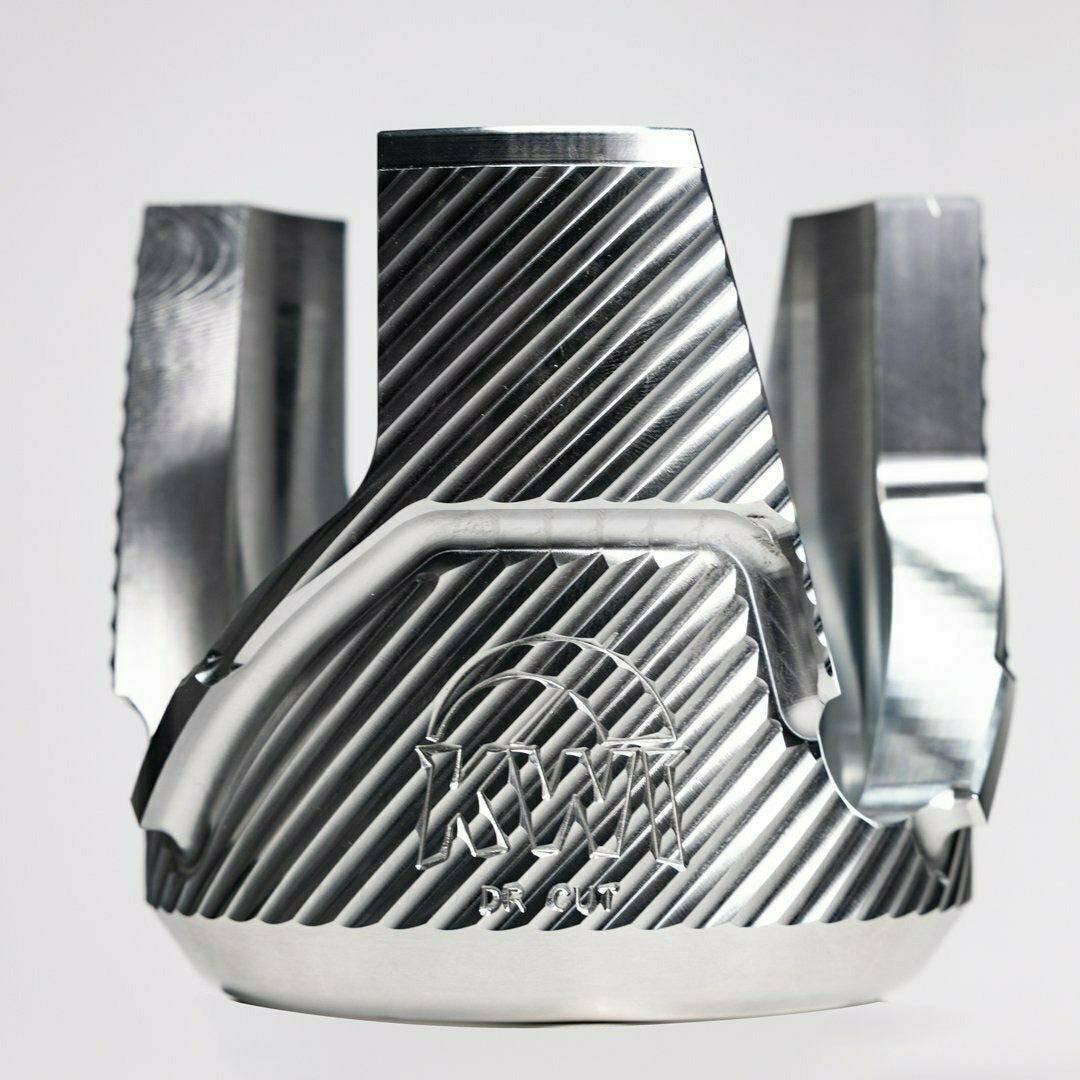

Can Am X3 Clutch Helix

KWI GROOVIX BILLET 7075 ALUMINUM COOLING HELIX FOR CAN-AM- COMES IN 3 VERSIONS- ALL VERSIONS UTILIZE THE KWI PATENT PENDING HELIX COOLING TECHNOLOGY.

• DR3 CUT- THE DR3 HELIX ANGLE WAS DESIGNED FOR UP TO 220 WHEEL HP TO HELP YOUR TURBO SPOOL UP QUICK FOR AGGRESSIVE ACCELERATION AND BACKSHIFTS QUICKLY WHEN YOU SLOW DOWN SO THE POWER WILL BE THERE WAITING WHILE STILL PROVIDING SMOOTH CRUISING. HIGH-SPEED PERFORMANCE AND BELT LIFE ARE UNMATCHED WITH THE DR3 ANGLE USING INCREASED FULL SHIFT BELT SQUEEZE TO STOP BELT SLIP AND IMPROVE PERFORMANCE/BELT RELIABILITY AT HIGH SPEEDS TO KEEP UP WITH TODAYS NEW AND EVER-CHANGING BELT COMPOUNDS.

• #4 CUT- THE #4 ANGLE LAYS DOWN THE BIG TURBO POWER LIKE NO OTHER HELIX. THE #4 CUT WILL SHIFT HARD AT LOWER SPEEDS TO HARNESS AFTERMARKET BIG TURBO KITS AGGRESSIVE POWER DELIVERY WHILE KEEPING RPMS IN THE POWER BAND AT HIGHER SPEEDS TO PROVIDE YOU A SMOOTH, FLAT SHIFT CURVE THAT ACCELERATES HARD, GRIPS THE BELT, AND STILL HAS THE ULTRA-QUICK BACKSHIFTING YOU EXPECT.

• BT CUT- THIS IS A SPECIALTY BIG TURBO CUT DESIGNED FOR ALL-OUT DRAG CARS WITH EXTREMELY LARGE SINGLE OR COMPOUND TURBO SYSTEMS, NITROUS OXIDE ETC OVER 550 WHEEL HP (60 PSI BOOST PRESSURE) USING 2 STEP LAUNCH CONTROL AT OR ABOVE 15 PSI AND 4000 RPM. THE BT CUT WILL SHIFT EXTREMELY HARD TO GET YOU OUT IN FRONT QUICKLY THEN PROVIDE UNMATCHED BELT GRIP TO STOP BELT SLIP AS YOU LEAVE YOUR COMPETITION AT GAPPLEBEES.

THE GROOVIX FEATURES A UNIQUE RIB AND FAN DESIGN TO LOWER BELT TEMPS AND PROLONG BELT LIFE. THE GROOVIX FAN DRAWS AIR INTO THE CENTER OF THE SECONDARY CLUTCH AND COOLS THE UNDERSIDE OF THE BELT AND SHEAVES. THE RIB DESIGN CREATES MORE SURFACE AREA FOR THE COOLING AIRFLOW TO REMOVE CLUTCH HEAT. THE COMBINATION OF THESE FEATURES IS A MAJOR STEP FORWARD IN HELIX TECHNOLOGY. THE NEW GROOVIX IS MADE FROM AIRCRAFT GRADE 7075 ALUMINUM BILLETS (1 SOLID CHUNK OF METAL).

VEHICLE FITMENT

• Can Am Commander 1000 (2021+)
• Can Am Defender HD10 (2021+)
• Can Am Maverick Sport (2021+)
• Can Am Maverick X3
