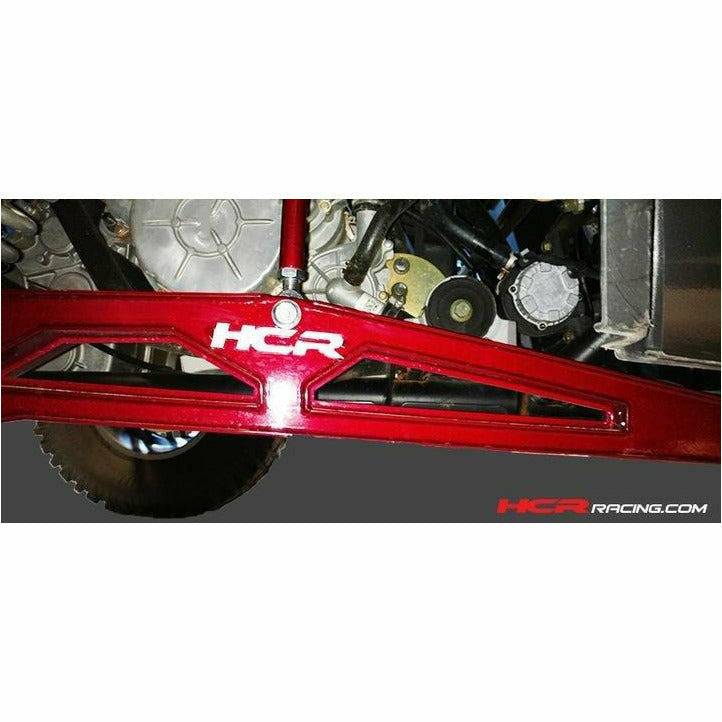

Polaris RZR XP 1000 / Turbo Dual Sport Long Travel Suspension Kit (Raw)

HCR's proprietary billet, slot and tab design and honeycomb boxed arms are built to withstand the beatings of rigorous off-road riding which achieving the optimal combination of strength and appeal.

Features:

• HCR alloy used to build every kit is 30% stronger than 4130 Chromoly

• Every external weld is an internal plate structured into the design

• HCR kits run a 4130-heat treated billet end allowing all internal and external plating to be attached to this billet eliminating a potential weak point

• Billets are available in both ball joint and spherical applications

• HCR Shock tower to reduce compound leverage and achieve a better motion ratio

• Addition wheelbase of +3 inches

• Additional width of +4 inches per side

• Ground Clearance increased by 1.25 inches in the arm design

• RCV 4340 Chromoly extended axle bars

• King 2.5 Series HCR Spec. shocks with a 2.5 piggyback up front and the 2.5 IBP in the back

IBP Front Upgrade
Intended for the Dune enthusiast, Racers, and those who like to push it that much harder. This upgrade extends the same internal bypass technology included in the rear shocks to all 4 corners. This patented needle-valve design allows for less bottoming and shock fatigue on square edges, G outs, long distance racing, jumping, etc. where the front end needs a little more.

HIGH CLEARANCE RADIUS RODS
The high links are recommended for the recreational trail rider or Rock crawler. These ALL NEW HCR Aluminum High Links are a great way to get clearance under the rear and avoid rocks while out on the trails. Additional cost to upgrade.

STRAIGHT RADIUS RODS
These heavy-duty HCR Race links follow the same design as the standard radius rod with material increased to .120 wall tubing. The 5/8-18 heims are available in Right hand threads only. Additional cost to upgrade.

Includes:

• Front A-arms

• Rear Trailing arms

• Tie-rod Extensions

• Shock Tower

• RCV Axle bars

• King 2.5 HCR Spec. Shocks

• Radius Rods

• Heavy-Duty Backplate

• Hardware Pack

• Install guide


 MUST USE 4+3 OFFSET WHEEL WITH THIS KIT

VEHICLE FITMENT

• Polaris RZR XP 1000
• Polaris RZR XP Turbo
