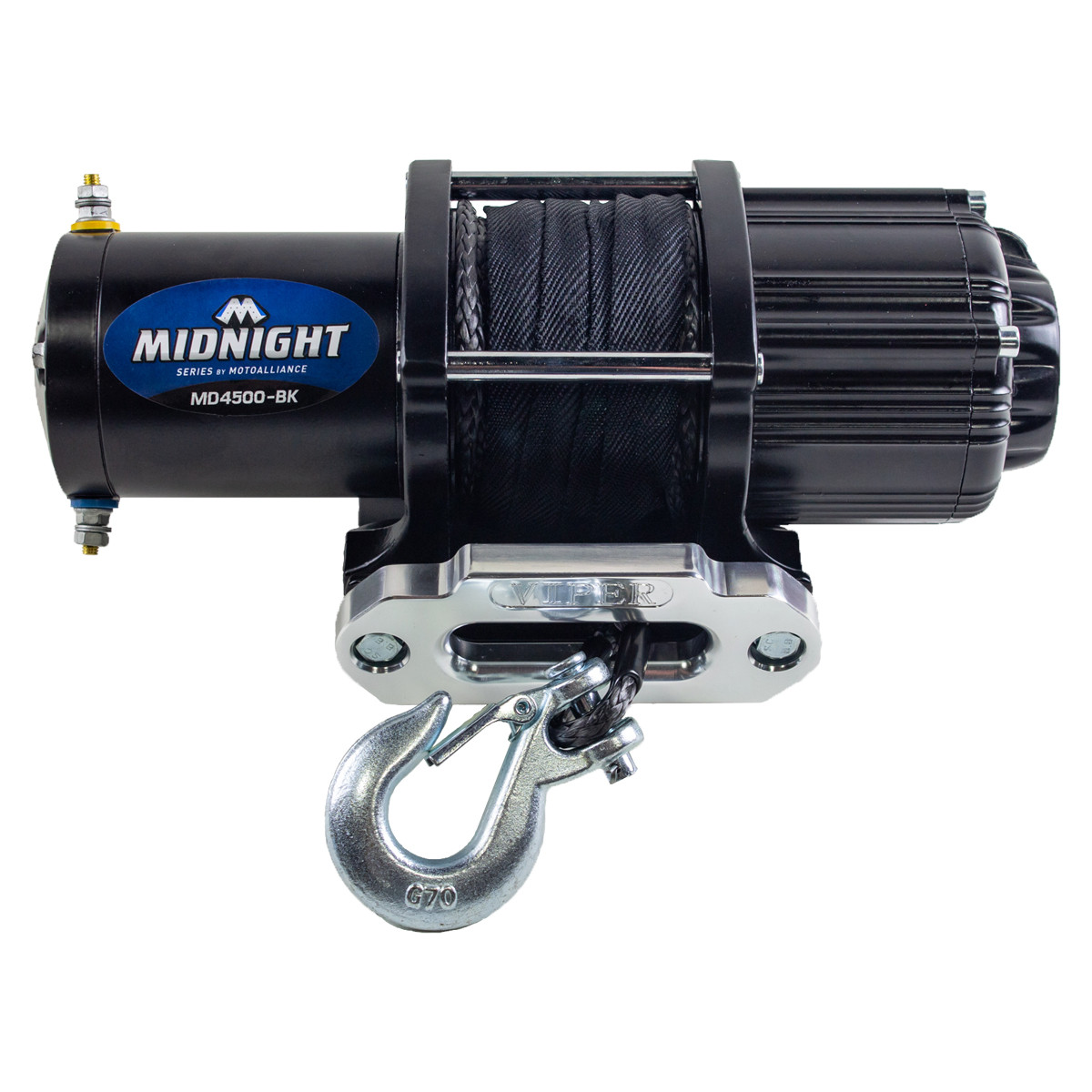

Viper Midnight UTV Winch For Polaris RZR

VIPER Midnight Series ATV / UTV / SxS winches have composite housing and all metal gears. Midnight Series winches include an automatic brake standard on them. The automatic brake is highly recommended for anyone using their winch with a plow.

Features:

• • Metal gears
• • Mechanical load holding and dynamic brake
• • 1 Year Warranty (winch) / 6 months (rope)

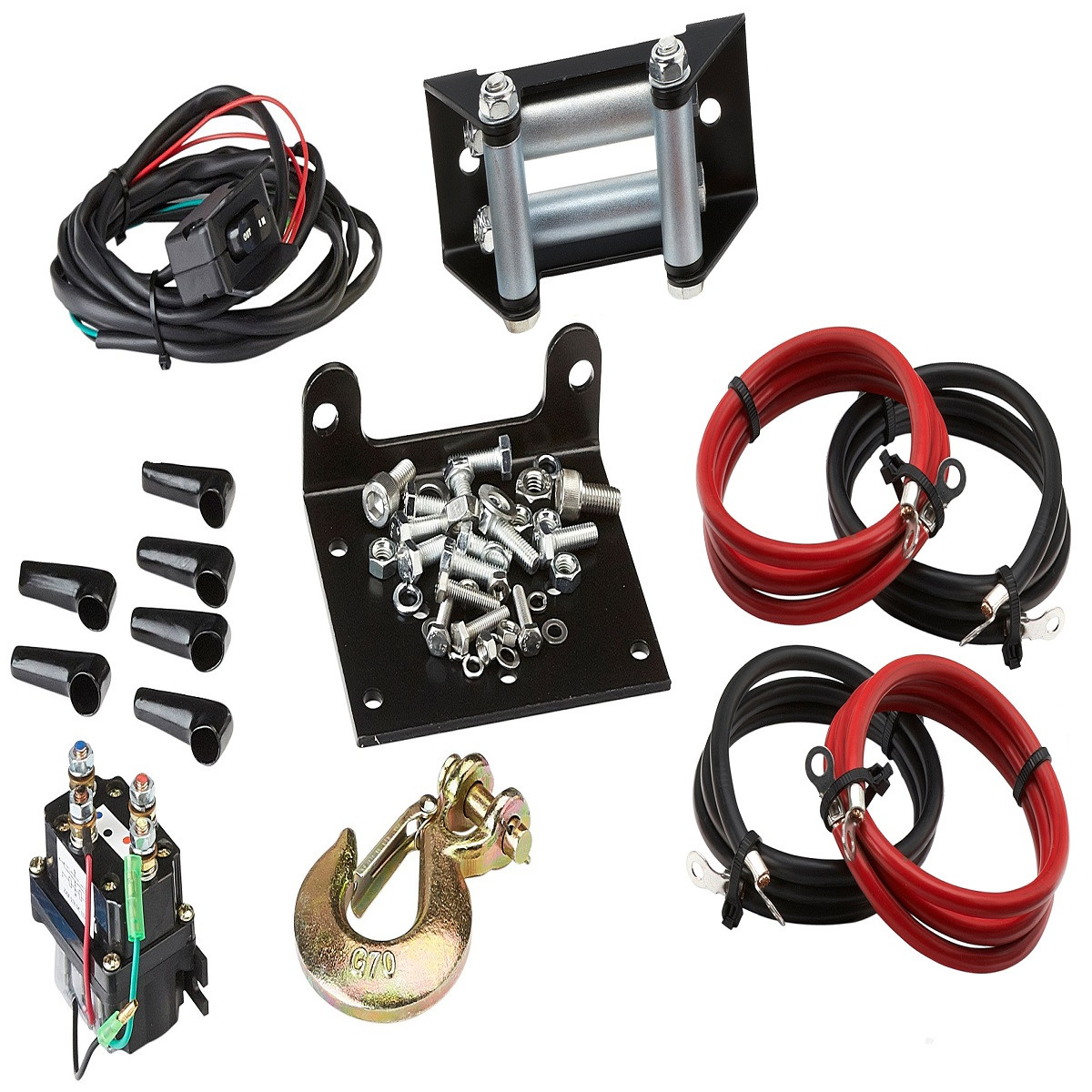

Kit Contents:

• • Steel Cable, or Choose to Upgrade to Synthetic Rope (rope includes 6 month warranty)

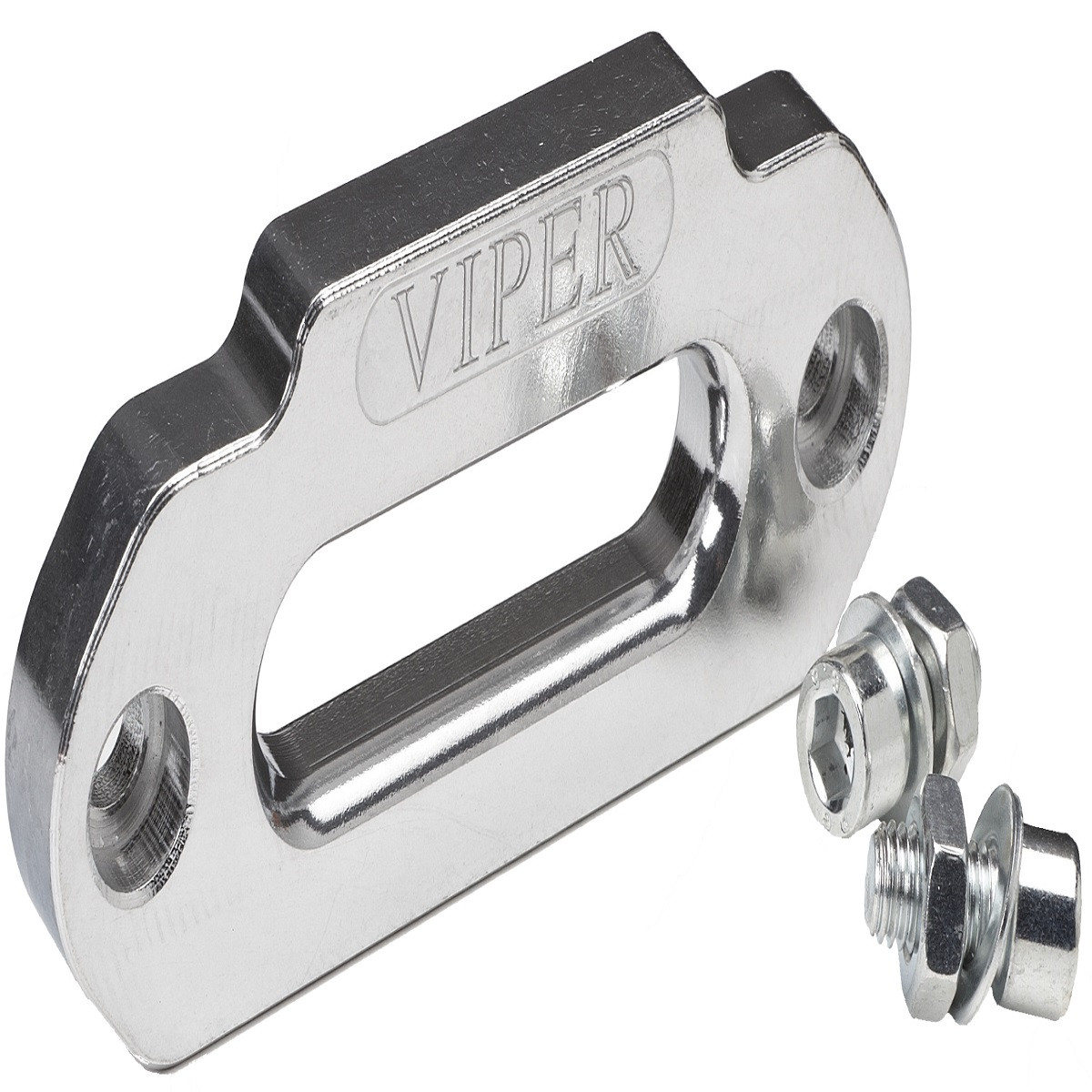

• • Fairlead - Roller or Aluminum Hawse based on the type of cable
• • Contactor / Solenoid & Wiring

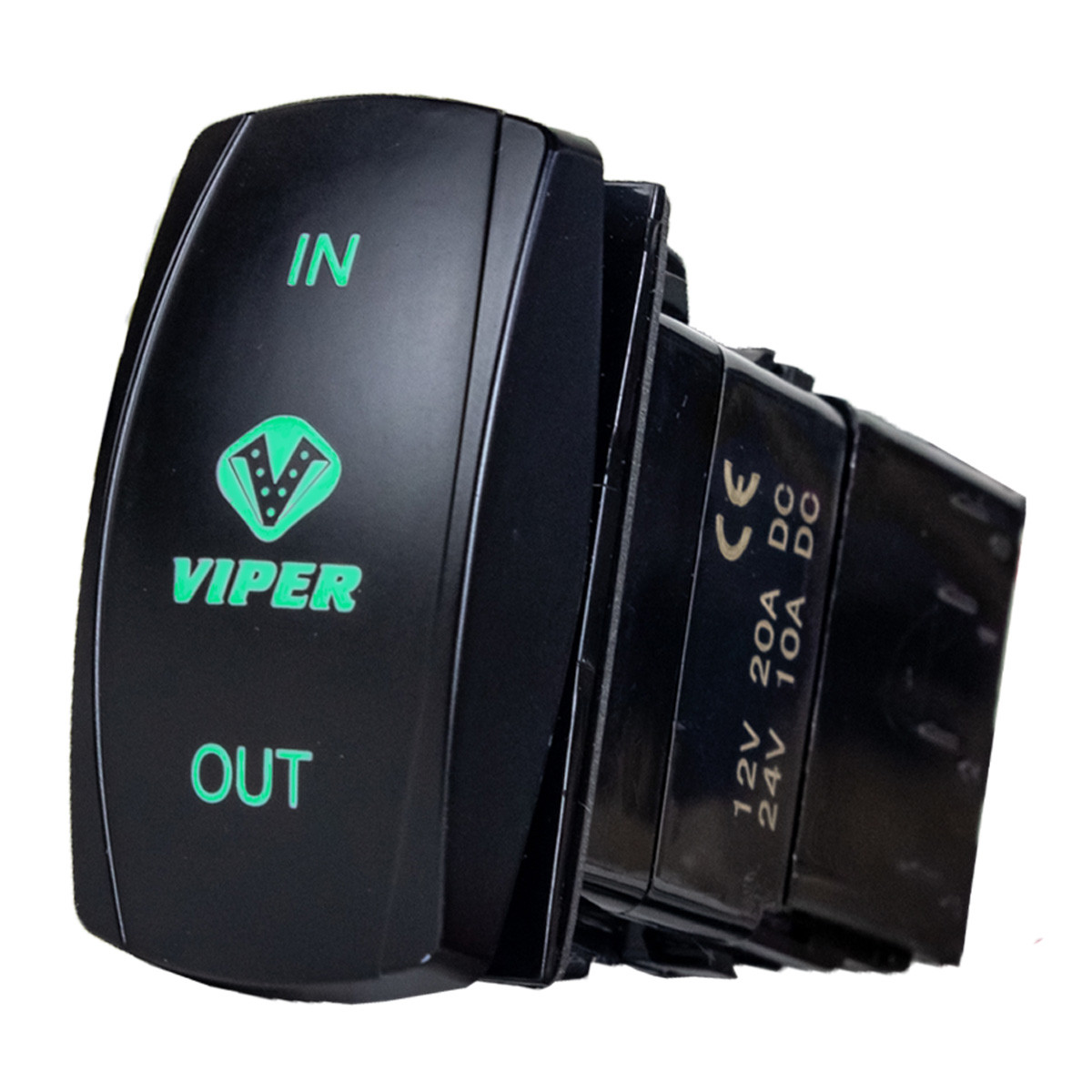

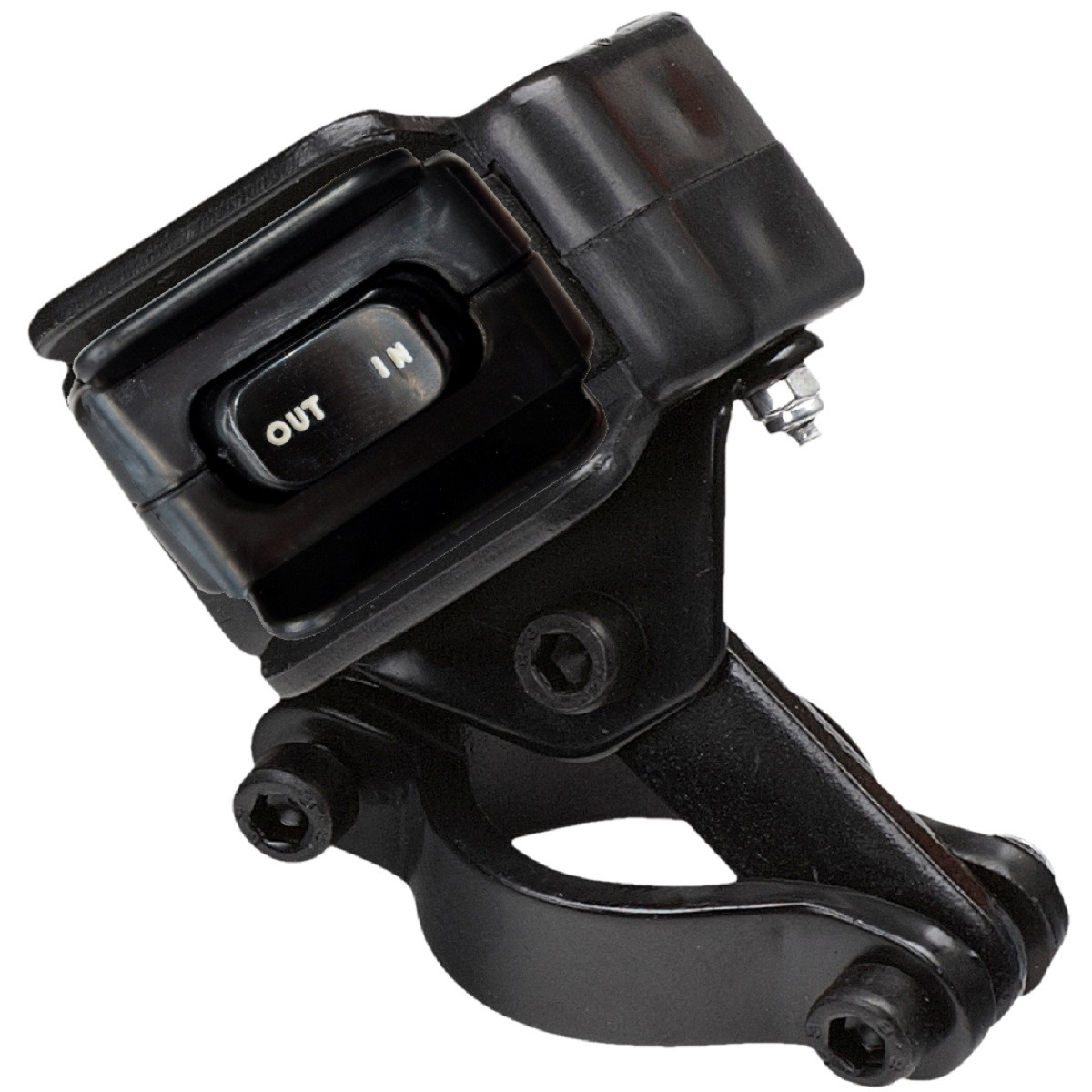

• • Rocker Handlebar Switch (LED Dash Switch Upgrade Available)
• • Wireless Controller
• • Clevis Hook

• • Universal Fairlead Mount Plate
• • Installation Hardware and Instructions

Specs:

• • Cable - 50 feet of Steel or BLACK Dyneema
• • Dimensions:
• • Midnight 3,000 : 12.25 inch (L) x 4.5 inch (W) x 4.5 inch (H)
• • Midnight 4,500 : 13 inch (L) x 4.5 inch (W) x 4.75 inch (H)
• • Motor - 12V DC, permanent magnet motor
• • Brake - Mechanical load holding and dynamic
• • Gearing - Steel planetary gears
• • Wiring - [8 gauge (English) - 84/.3 (Metric)]
• • Hardware - stainless steel
• • Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123. 83mm)

Mount Fitment For RZR
MA11902

• 2011-2014 RZR XP 900
• 2011-2014 RZR-4 XP 900
• 2012-2013 Brutus
• 2012-2013 Brutus HD (will NOT fit Brutus HDPTO)
• Please Note: Wide Spool Winches will not fit on Polaris RZRs.

MA11906

• 2015-2021 RZR     900 all models
• 2015-2021 RZR-4 900 all models
• 2015-2021 RZR     Trail
• 2016-2021 RZR     1000
• 2016-2021 RZR-4 1000
• 2016-2022 RZR     1000 S
• 2016-2022 RZR-4 1000 S
• 2014-2021 RZR     1000 XP
• 2014-2021 RZR-4 1000 XP
• Please Note: will NOT fit the 2016-2021 RZR Turbo due to interference with the inter-cooler
• Please Note: Wide Spool Winches will not fit on Polaris RZRs.
• Please Note: for optimized installation on the RZR 900 & 1000, an extended wire kit to reach the battery is recommended
• Please Note: will NOT work with the VIPER V2 Standard or Wide Spool winch

MA11906T

• 2016-2021 Polaris RZR Turbo EPS
• 2016-2021 Polaris RZR Turbo XP
• 2016-2021 Polaris RZR Turbo 4 EPS
• 2016-2021 Polaris RZR Turbo XP-4
• 2018-2021 Polaris RZR Turbo XP-4 Dynamix
• Please Note: Max 3500-5000lb and Midnight Series winches will NOT fit the 2016-2021 RZR Turbo due to interference with the inter-cooler
• Please Note: Wide Spool Winches will not fit on Polaris RZR Turbos.
• Please Note: for optimized installation on the RZR Turbo, an extended wire kit to reach the battery is recommended
• Please Note: will NOT work with the VIPER V2 Standard or Wide Spool winch

MA11908

• 2008-2014 RZR
• 2008-2014 RZR-S
• 2010-2014 RZR-4
• 2012-2021 RZR 570 all models
• 2008-2014 RZR 800
• Please Note: Wide Spool Winches will not fit on Polaris RZRs.
• Please Note: for optimized installation on the RZR 570 & 800, an extended wire kit to reach the battery is recommended.

MA11940

• 2018-2021 RZR Turbo S

• 2019-2021 RZR-4 Turbo S

Optional Extended Wiring
Two (2), 5 gauge cables, 12' each - this extra length of cable will easily reach batteries that are in the rear of the ATV/UTV.
Please Note: both ends of cables are eyelets

Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" ATV / UTV / SxS. We have many custom mount plates designed to bolt on to your ATV / UTV / SxS.
