Polaris RZR XP 1000 6 Inch Portal Gear Lift Single Idler
Polaris RZR XP 1000 6 Inch Portal Gear Lift Single Idler
Get the clearance you need to run bigger tires and the torque you need to turn them with SuperATV’s GDP 6” Portal Gear Lift for the Polaris RZR XP 1000. Our Gen 3 portals let you customize your ride by picking your gear reduction (30% or 45%) and your housing style (cast or billet aluminum). No matter what kind of off-roading you do or what size tires you’re running, SuperATV portals ensure that you get the perfect amount of torque to maintain your optimal riding style.
GDP—the Most Trusted Name in Portals
SuperATV portals are the most trusted and proven portal gear lifts on the market. More off-road enthusiasts are riding on GDP portals than any other brand on the market. If you’re looking to outfit your machine with products that represent expertise and quality, look no further than SuperATV.
Perfect for Mud
If your perfect weekend involves chewing through the biggest, thickest mud holes you can find, our GDP portals are the perfect choice. The extra 6” of lift leaves you with plenty of room to run some massive mud tires, and a gear reduction provides the boost in torque you need to dominate in the mud bogs. You’ll never look at mud the same way again.
A Gear Reduction That Protects Your Drivetrain
The gear reduction of our portals happens right in the hub—not in your transmission. This greatly cuts back on the strain put on vital components such as your axles and differential. You’ll be able to ride harder than ever while putting less stress on your vehicle. Talk about having your cake and eating it too!
Learn more about how tire size and gear reduction can unleash your machine’s potential.
Unmatched Gear Material

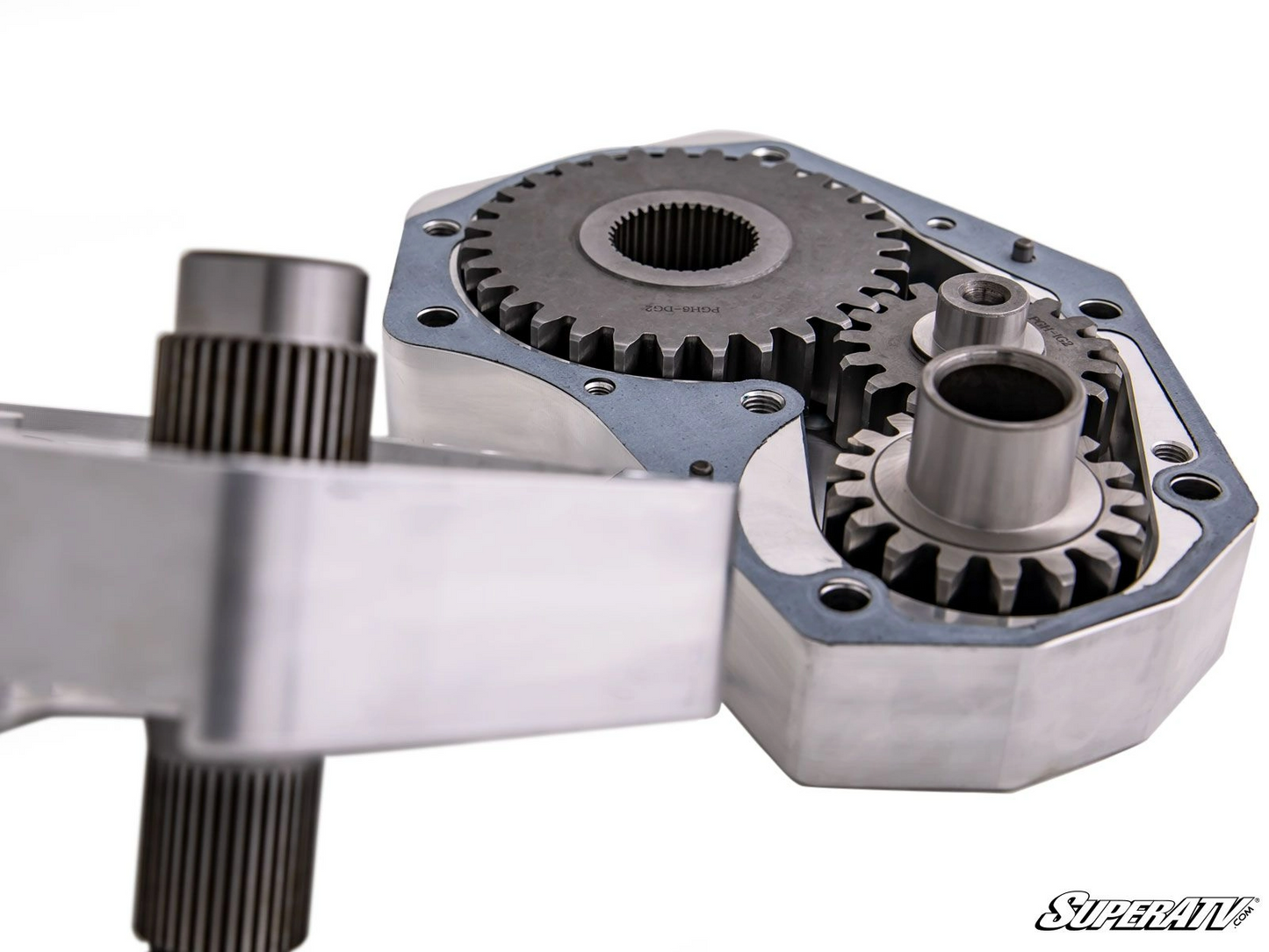

Our top-of-the-line portal gears are made with 9310 billet steel alloy for high strength and high speed. They’re precision ground so you can trust that they’ll mate perfectly while staying cool and quiet, even when you’re hammering down the throttle on the road. Our combination of the best material and the smartest engineering gives you gears that are second to none.
Stronger Housings by Design

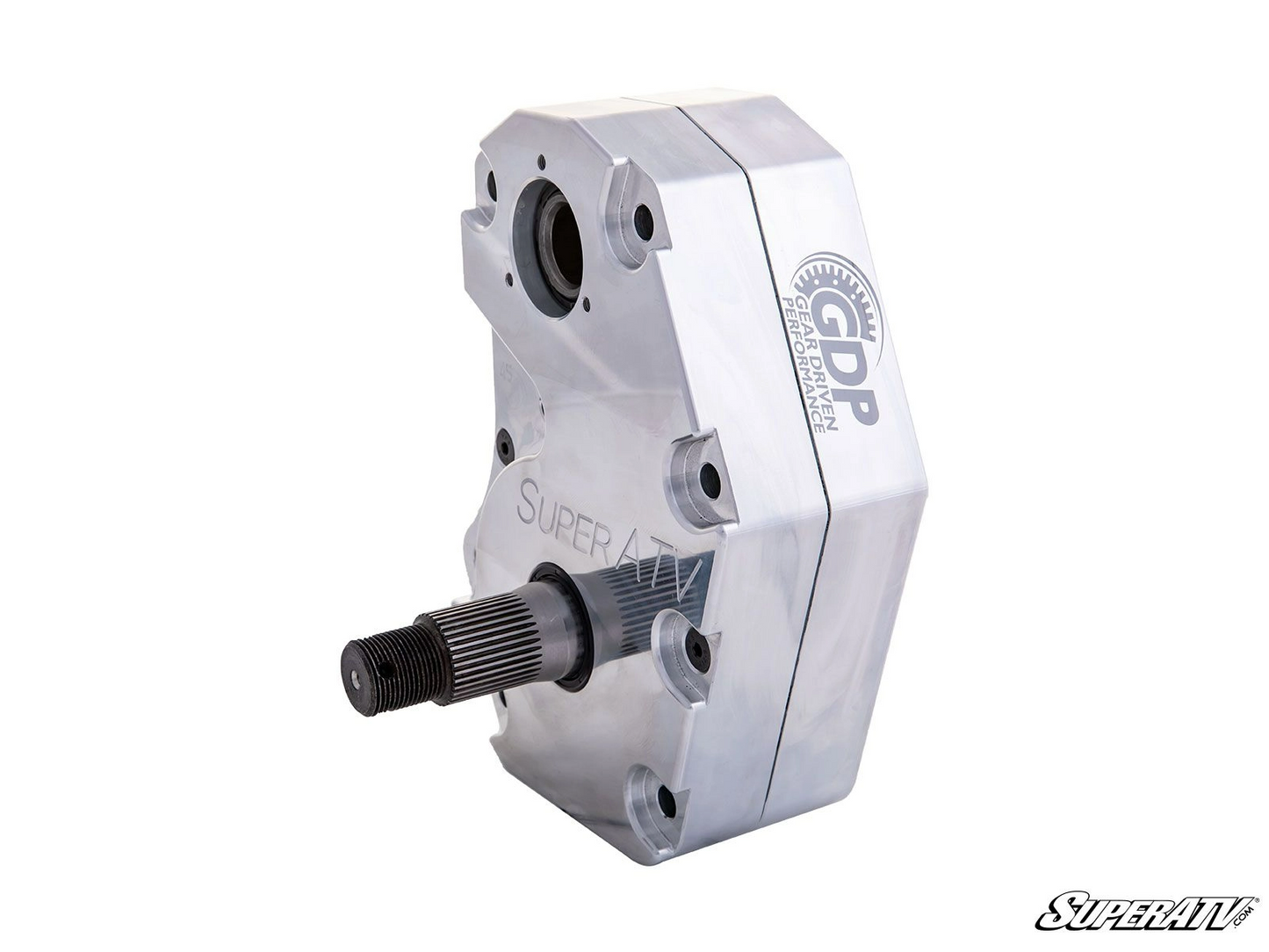

Gen 3 portals are all about letting you customize your ride to suit your unique style, and that’s why we like to give you options. Pick from cast or USA-made, CNC-machined 6061 billet aluminum housings. Whichever you choose, you’re getting first-rate portal housings that offer unmatched strength and reliability.
- Our housings are reinforced in all the right places
- They’re built with better oil flow and gearing forces in mind
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Our 5/16” thick backing plates are made with an advanced steel alloy that’s specialized for ultra-high force applications. This material is even stronger than chromoly steel, and since we make them so thick, your backing plates are guaranteed to outlast your machine. We cut no corners when designing these backing plates.
Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use:
- Advanced Thermo-Tork® gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
Your bearings keep everything running smoothly and prevent you from ending up with a busted box. That’s why we use roller bearings to hold our idler gear—because we don’t compromise when it comes to strength. Our output bearing is a double-angular contact bearing that can handle huge loads in any direction without showing wear. In other words, these bearings mean business. They’re built for battle and just another reason why GDP portals are the best.
Universal Hubs and Slotted Rotors
We designed our precision-ground, stainless steel slotted rotors to stay cool and give you the braking power you need, when you need it. Another feature designed to make your life easier is our universal hubs, which come with 4/156, 4/137, 4/115, and 4/110 bolt patterns and lugs. This means you’ll be able to fit just about any side-by-side wheels on these hubs. We also invented the tapered output shaft that our hubs attach to. It gives you a more secure lock that won’t wobble or wear over time.
Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
|6” Portal Gear Lift Includes:|

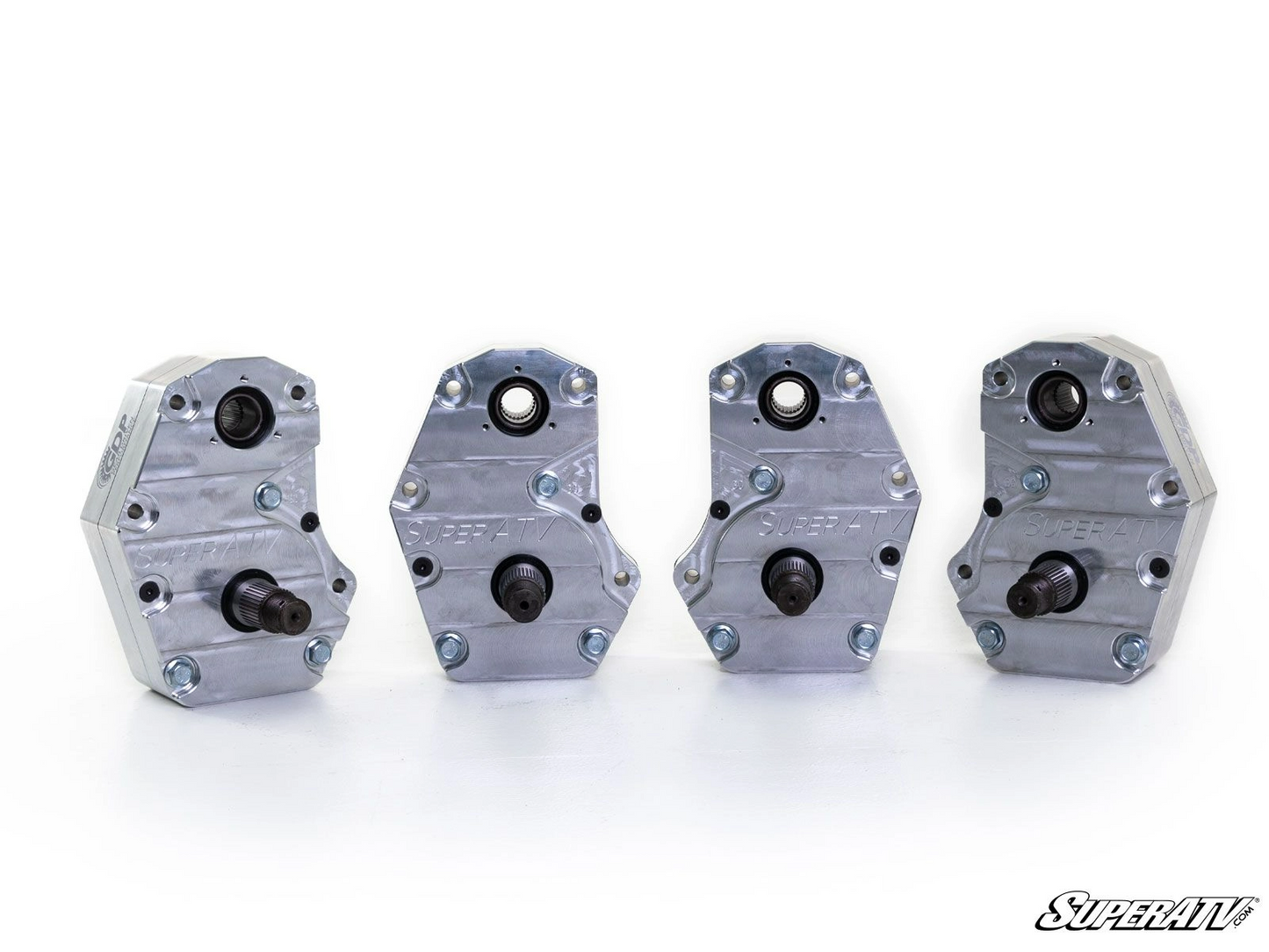

|(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork® gaskets, and thrust bearings|
|(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs|
|(4) Specialized steel alloy backing plates|
|(4) Steel caliper mounting plates|
|(2) Caliper adapter plates|
|(2) Steel steering arms|
|(6) Rear toe shims|
|Extended brake lines|
|All required hardware, including recessed castle nut socket|
|Polaris RZR XP 1000 Portal Gear Reduction Recommendations|
|Max Tire Size||Required Suspension Setup with 6" Portals||Recommended 6" Portal Gear Reduction|
|29" to 34"||Stock||30%|
|29" to 36"||1.5" Forward Offset A-Arms||30%|
|29" to 36"||3-5" Lift Kit||30%|
|37" to 39"||1.5" Forward Offset A-Arms and 3-5" Lift Kit||30%|
|40" to 46"||7-10" Lift Kit||45%|
|Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Give us a call for more information.|
⚠ California Proposition 65 Warning ⚠
WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
- Available with billet or cast aluminum housing
- Cool, quiet, precision-ground gears made from 9310 alloy billet steel
- 1.5 in. diameter 4340 hardened steel drive shaft
- Housings use Thermo-Tork® gaskets that don’t let anything through
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Weighs 224 lb. total, which is 25+ lb. lighter than the competition
- 18” or larger wheel required
- 18” wheels cannot exceed 4-1/2” backspacing
- 20” and larger wheels cannot exceed 5” backspacing
- Polaris RZR XP 1000 : 2014+
- Polaris RZR XP 4 1000 : 2014+ NOTE: Please check the bolt size of the hardware that fastens the Radius Arms to the brace plate (see image below). Select the socket size that corresponds to your OEM size. Polaris made a change in the mid-year in 2017 that has caused some confusion with fitment.
