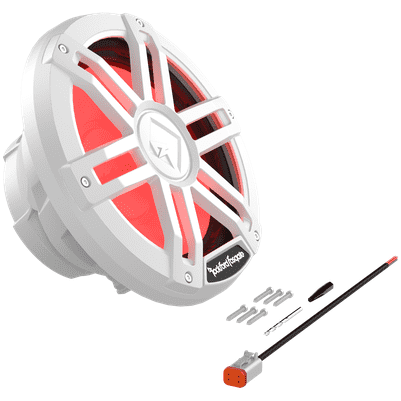

Rockford Fosgate M1 10" Color Optix Subwoofer

The M1D2-10 Color Optix™ 10” DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.

The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch.

• Optically clear UV stable RGB Lighting Encapsulation
• Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
• 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
• Vented motor design with water-repelling nano coated mesh screen
• Fully insulated silicone tinsel leads
• Zinc Nickel-plated Marine grade brass connection terminals
• Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
• Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
• Linear Synthetic Fiber Blend Spiders
• Santoprene VAST Surround
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• Co-molded surround and mineral filled polypropylene cone body
• Injection molded mineral filled polypropylene cone body with UV inhibitors
• VERSA impedance switch quickly allows series or parallel configuration without additional wiring
• 2-Year Warranty

Please consult your amplifier owner's manual for lowest recommended impedance.

Wiring Diagram #1

Wiring Diagram #2

Wiring Diagram #3

Wiring Diagram #4

Wiring Diagram #5

Wiring Diagram #6

Wiring Diagram #7

Wiring Diagram #8

Wiring Diagram #9
