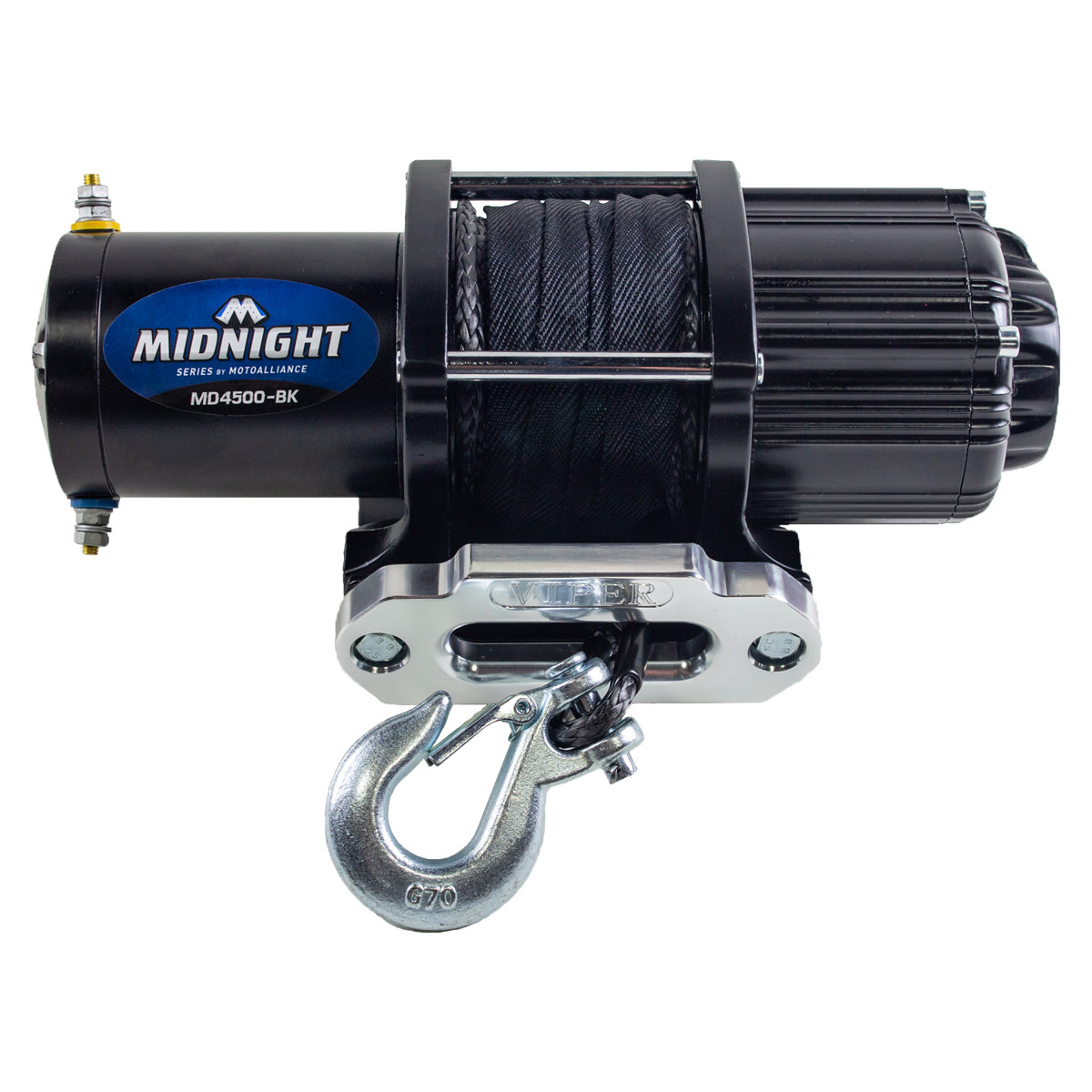

Viper Midnight UTV Winch For Honda Talon

VIPER Midnight Series ATV / UTV / SxS winches have composite housing and all metal gears. Midnight Series winches include an automatic brake standard on them. The automatic brake is highly recommended for anyone using their winch with a plow.

Features:

• • Metal gears
• • Mechanical load holding and dynamic brake
• • 1 Year Warranty (winch) / 6 months (rope)

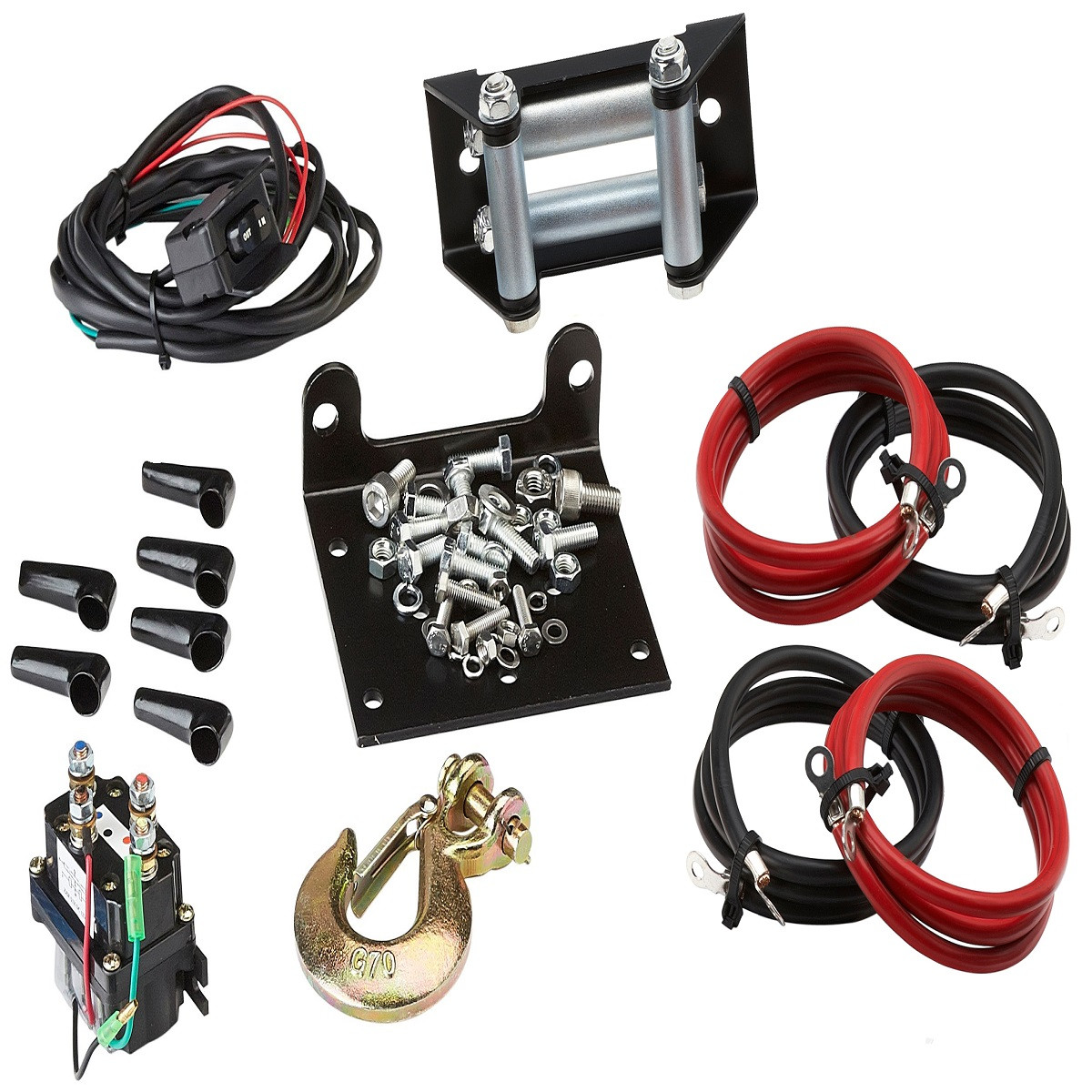

Kit Contents:

• • Steel Cable, or Choose to Upgrade to Synthetic Rope (rope includes 6 month warranty)

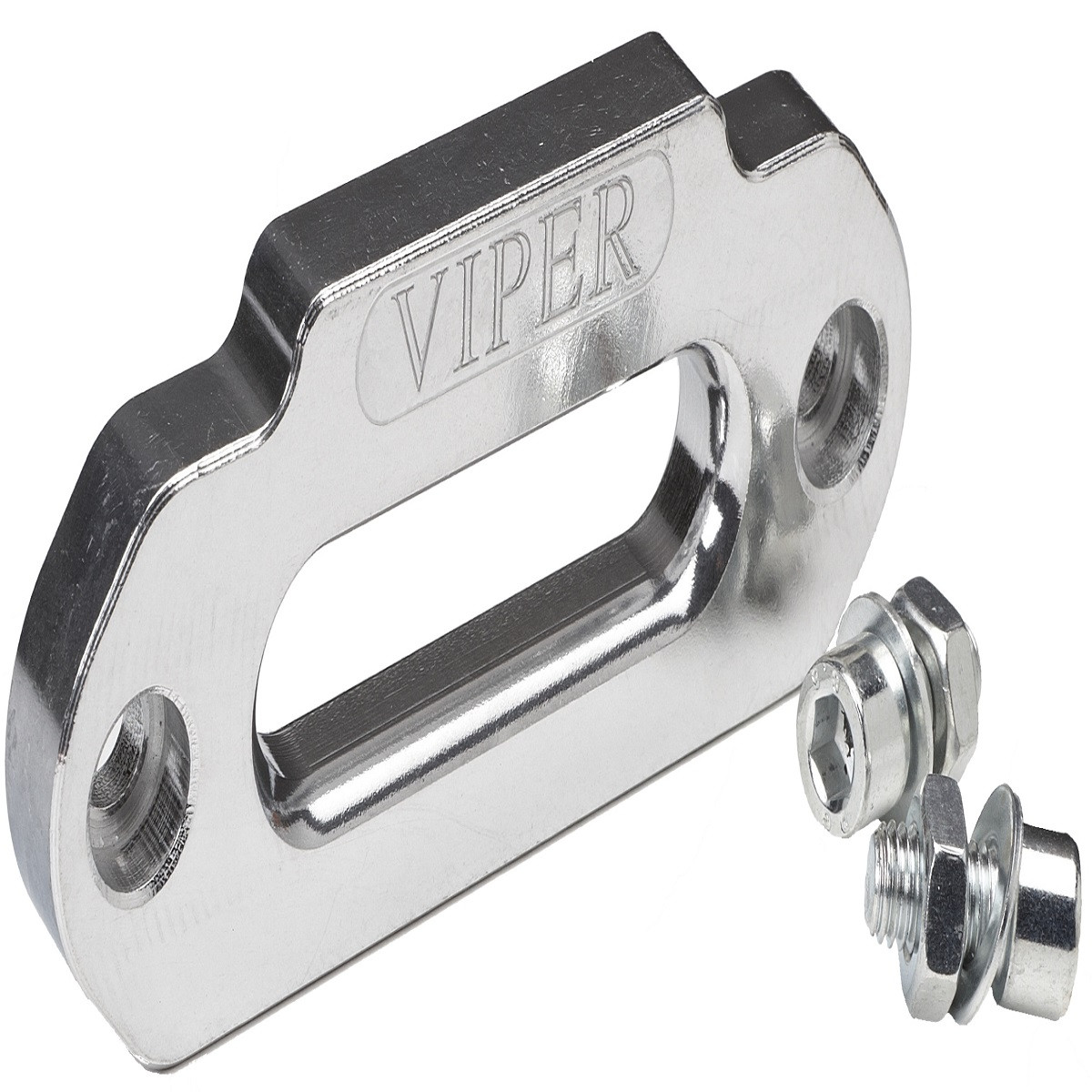

• • Fairlead - Roller or Aluminum Hawse based on the type of cable
• • Contactor / Solenoid & Wiring

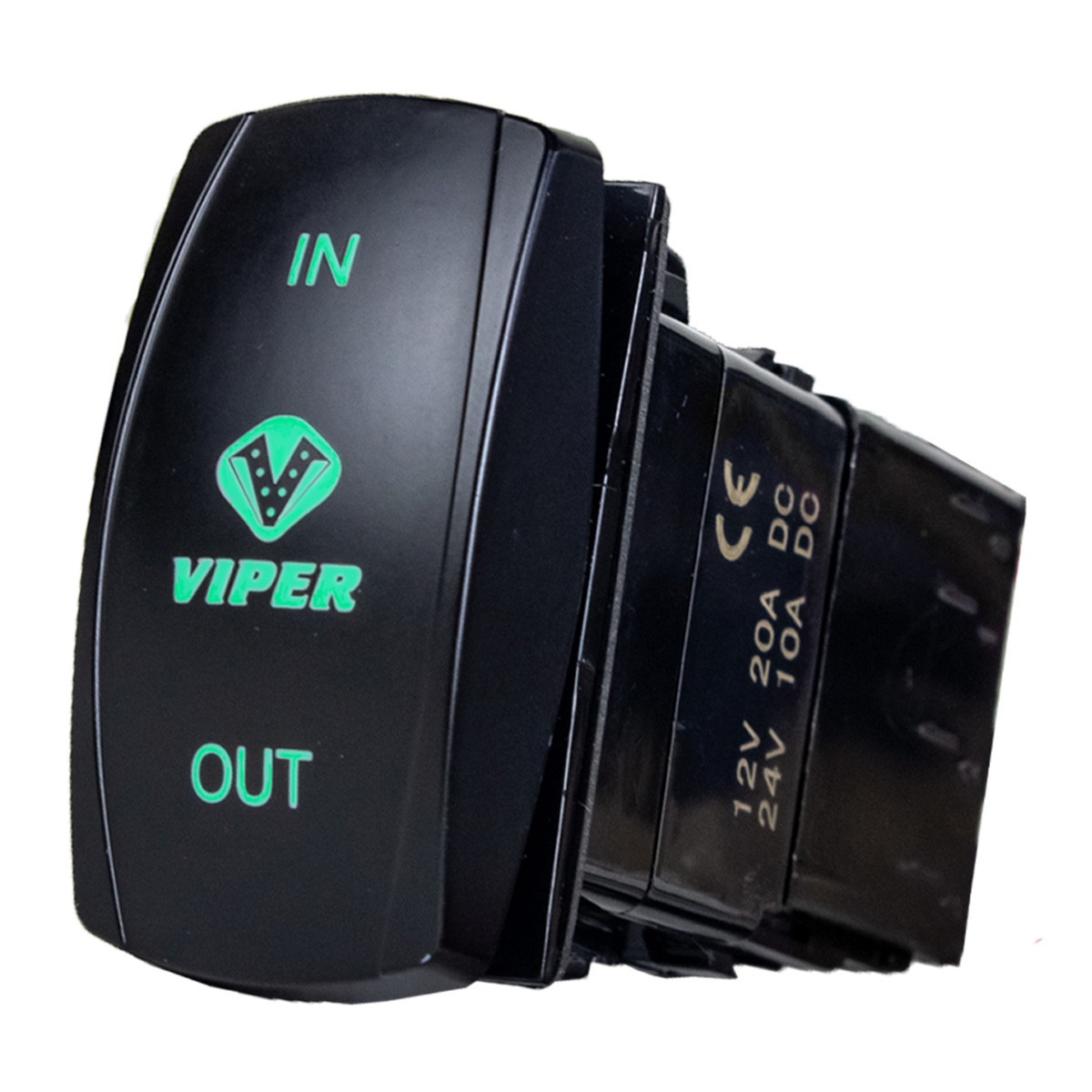

• • Rocker Handlebar Switch (LED Dash Switch Upgrade Available)
• • Wireless Controller
• • Clevis Hook

• • Universal Fairlead Mount Plate
• • Installation Hardware and Instructions

Specs:

• • Cable - 50 feet of Steel or BLACK Dyneema
• • Dimensions:
• • Midnight 3,000 : 12.25 inch (L) x 4.5 inch (W) x 4.5 inch (H)
• • Midnight 4,500 : 13 inch (L) x 4.5 inch (W) x 4.75 inch (H)
• • Motor - 12V DC, permanent magnet motor
• • Brake - Mechanical load holding and dynamic
• • Gearing - Steel planetary gears
• • Wiring - [8 gauge (English) - 84/.3 (Metric)]
• • Hardware - stainless steel
• • Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123. 83mm)

All 2010-2021 Can-Am Commanders

Fitment:
2013-2018 Maverick 1000
2013-2018 Maverick 1000 Max **
Please Note: will only work with stock bumpers
Please Note: will NOT work with any "X ds" or "X rs Turbo" models with the aluminum front bumper
** may need to purchase an extended wire kit to reach the battery.

Optional Extended Wiring
Two (2), 5 gauge cables, 12' each - this extra length of cable will easily reach batteries that are in the rear of the ATV/UTV.
Please Note: both ends of cables are eyelets

Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" ATV / UTV / SxS. We have many custom mount plates designed to bolt on to your ATV / UTV / SxS.
