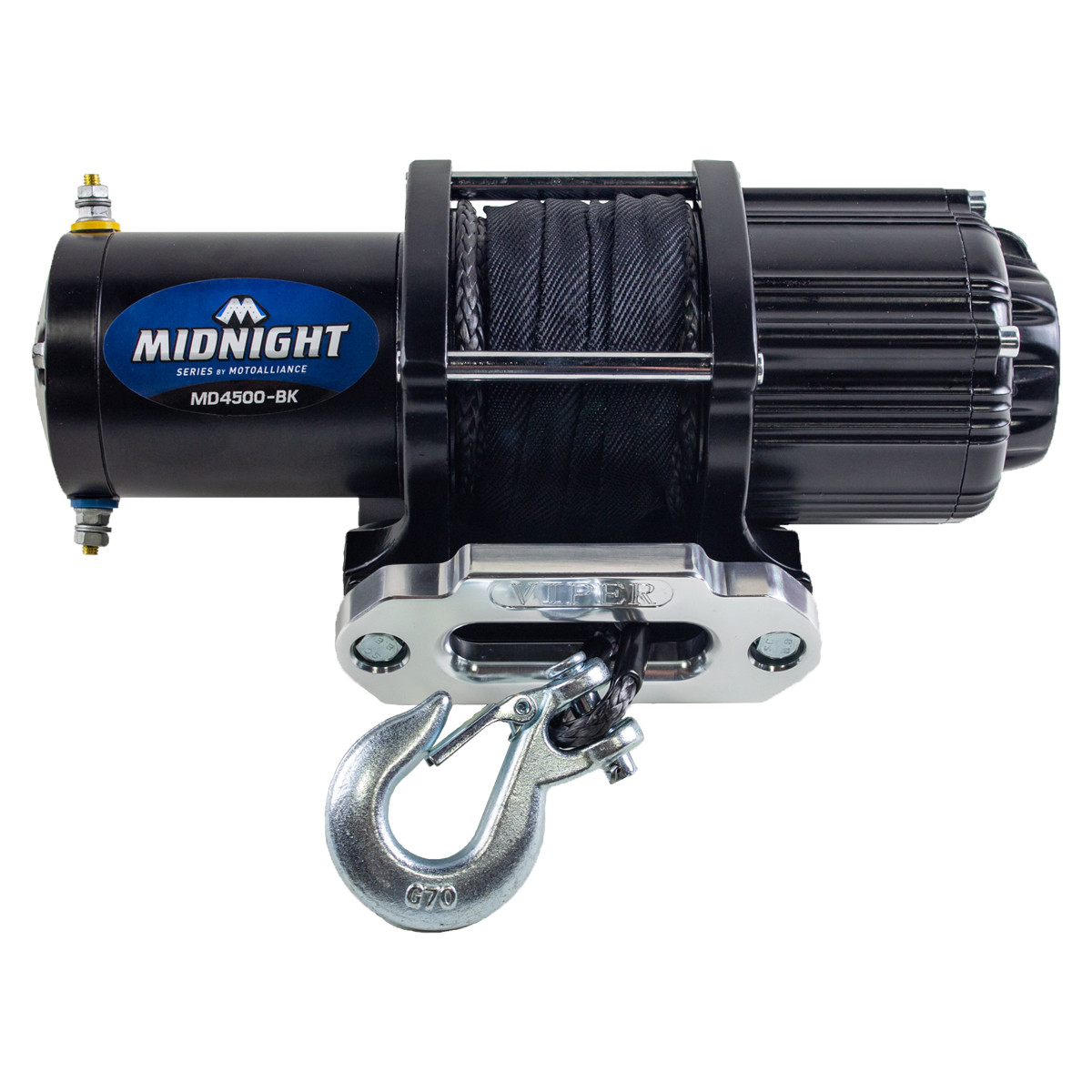

Viper Midnight UTV Winch For Polaris Ranger

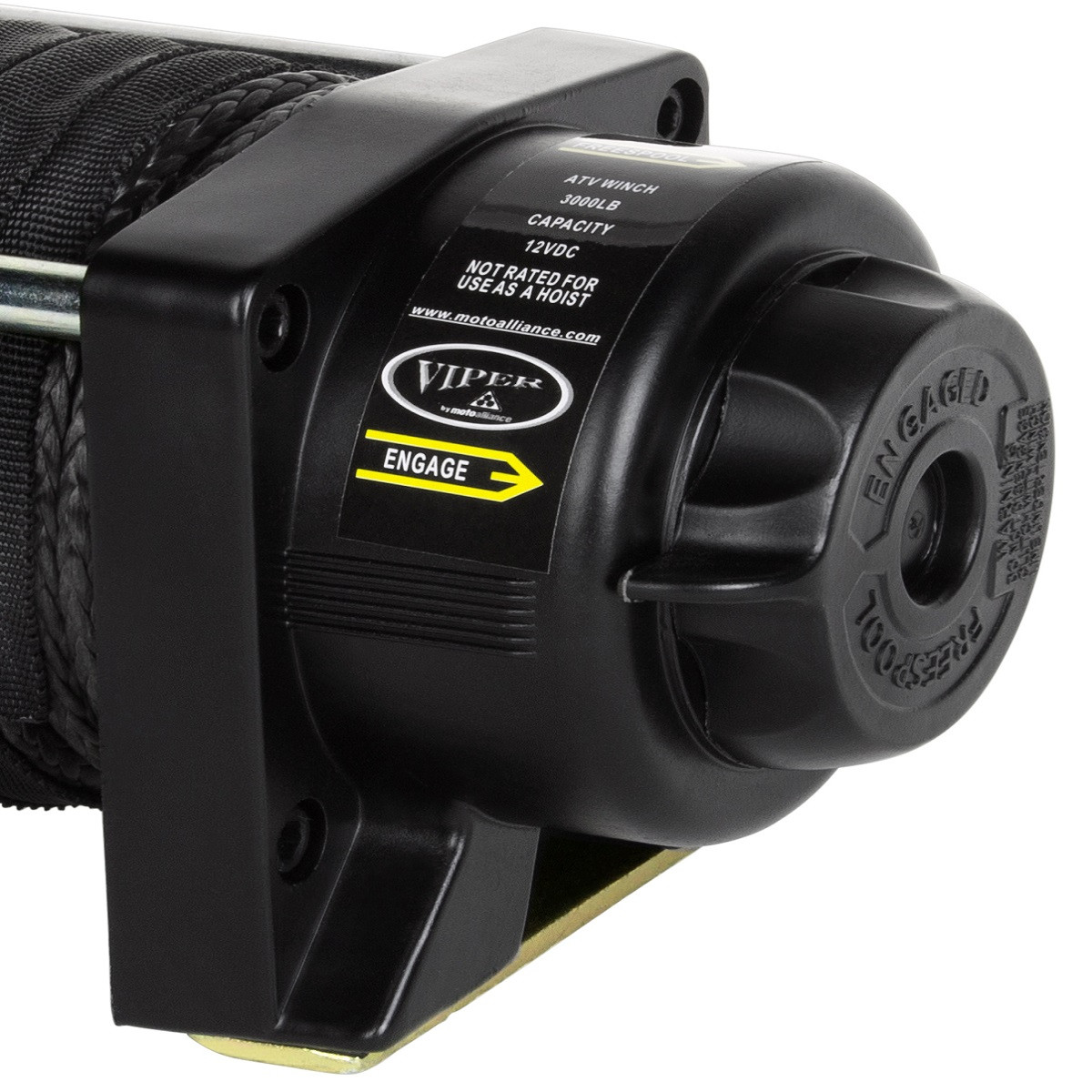

VIPER Midnight Series ATV / UTV / SxS winches have composite housing and all metal gears. Midnight Series winches include an automatic brake standard on them. The automatic brake is highly recommended for anyone using their winch with a plow.

Features:

• • Metal gears
• • Mechanical load holding and dynamic brake
• • 1 Year Warranty (winch) / 6 months (rope)

Kit Contents:

• • Steel Cable, or Choose to Upgrade to Synthetic Rope (rope includes 6 month warranty)

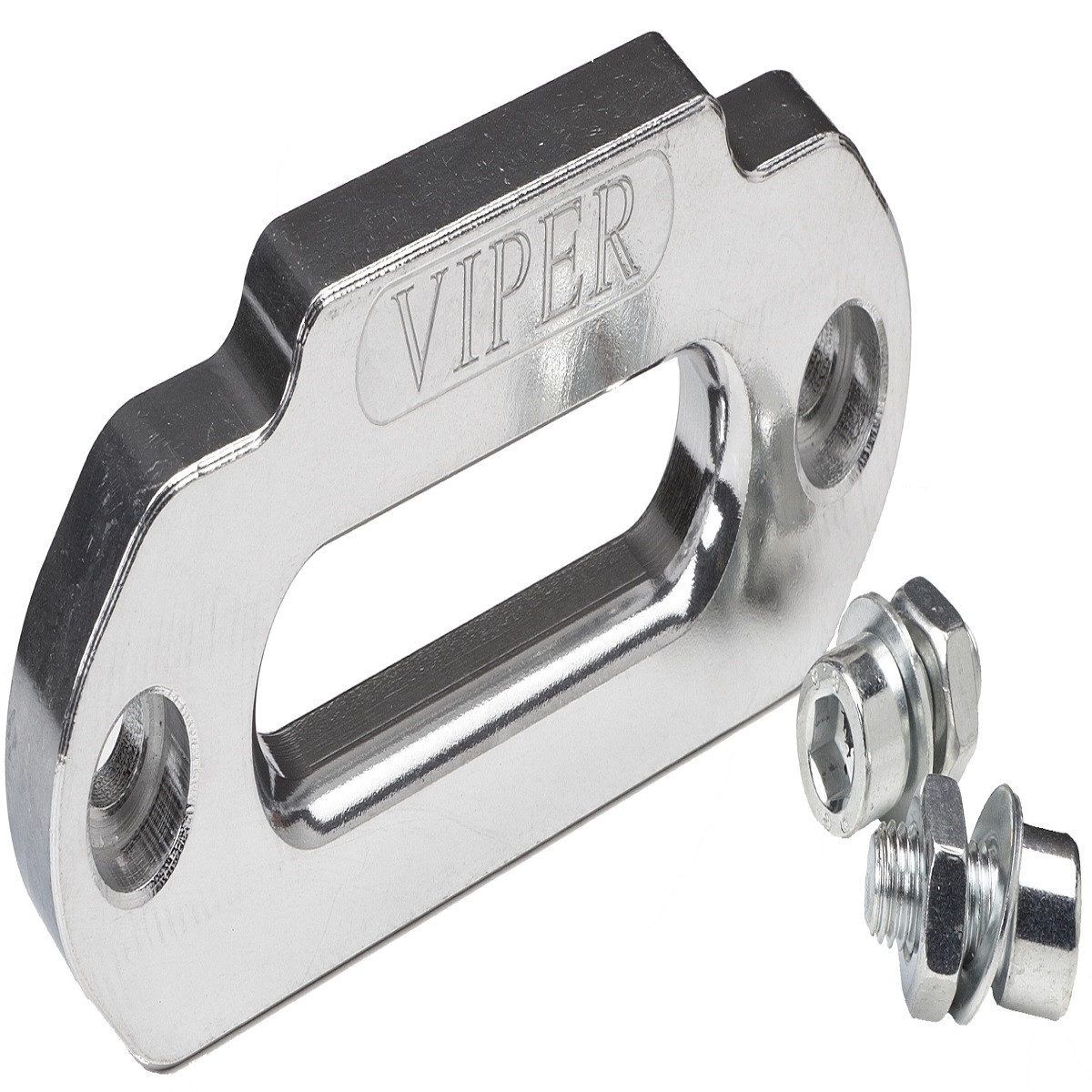

• • Fairlead - Roller or Aluminum Hawse based on the type of cable
• • Contactor / Solenoid & Wiring

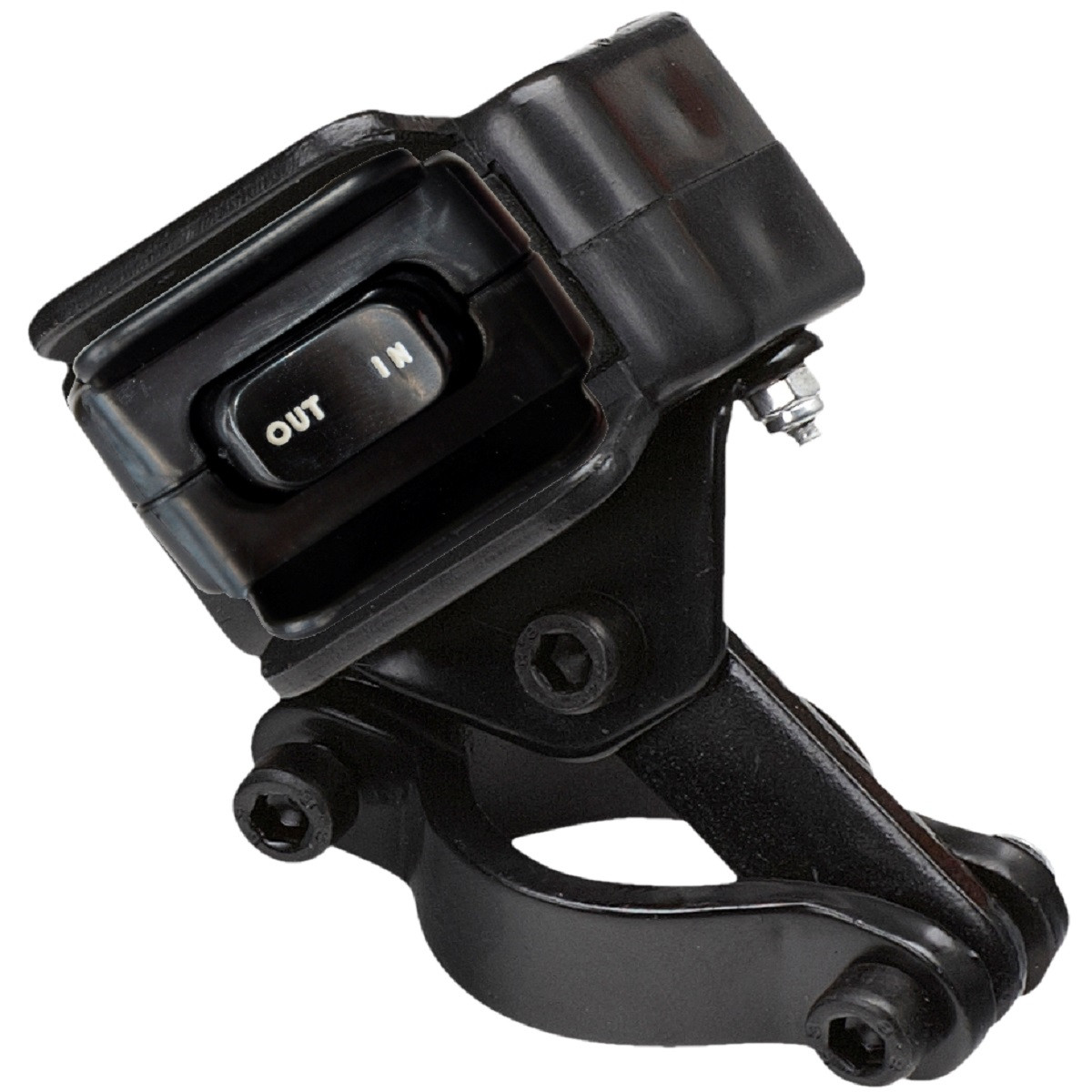

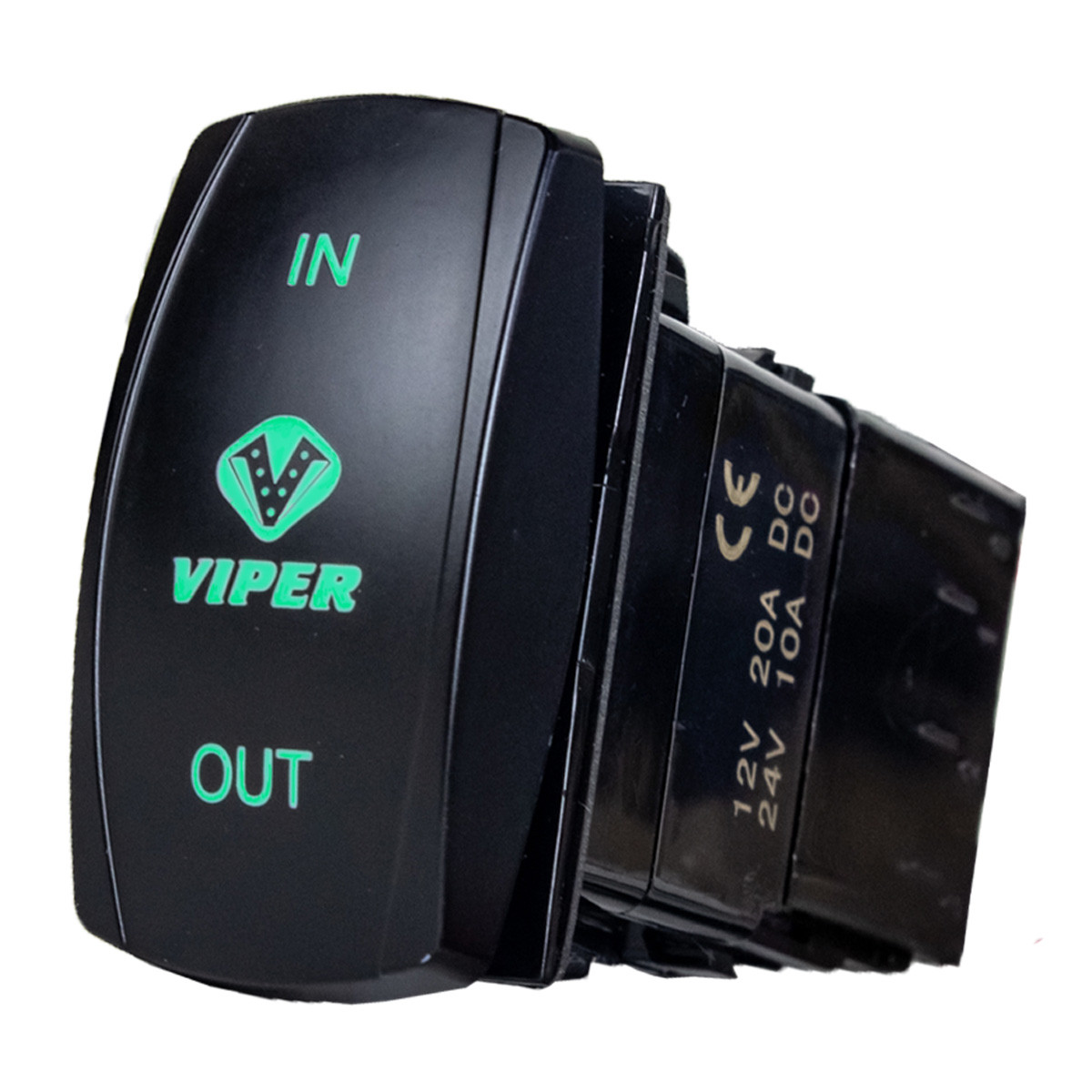

• • Rocker Handlebar Switch (LED Dash Switch Upgrade Available)
• • Wireless Controller
• • Clevis Hook

• • Universal Fairlead Mount Plate
• • Installation Hardware and Instructions

Specs:

• • Cable - 50 feet of Steel or BLACK Dyneema
• • Dimensions:
• • Midnight 3,000 : 12.25 inch (L) x 4.5 inch (W) x 4.5 inch (H)
• • Midnight 4,500 : 13 inch (L) x 4.5 inch (W) x 4.75 inch (H)

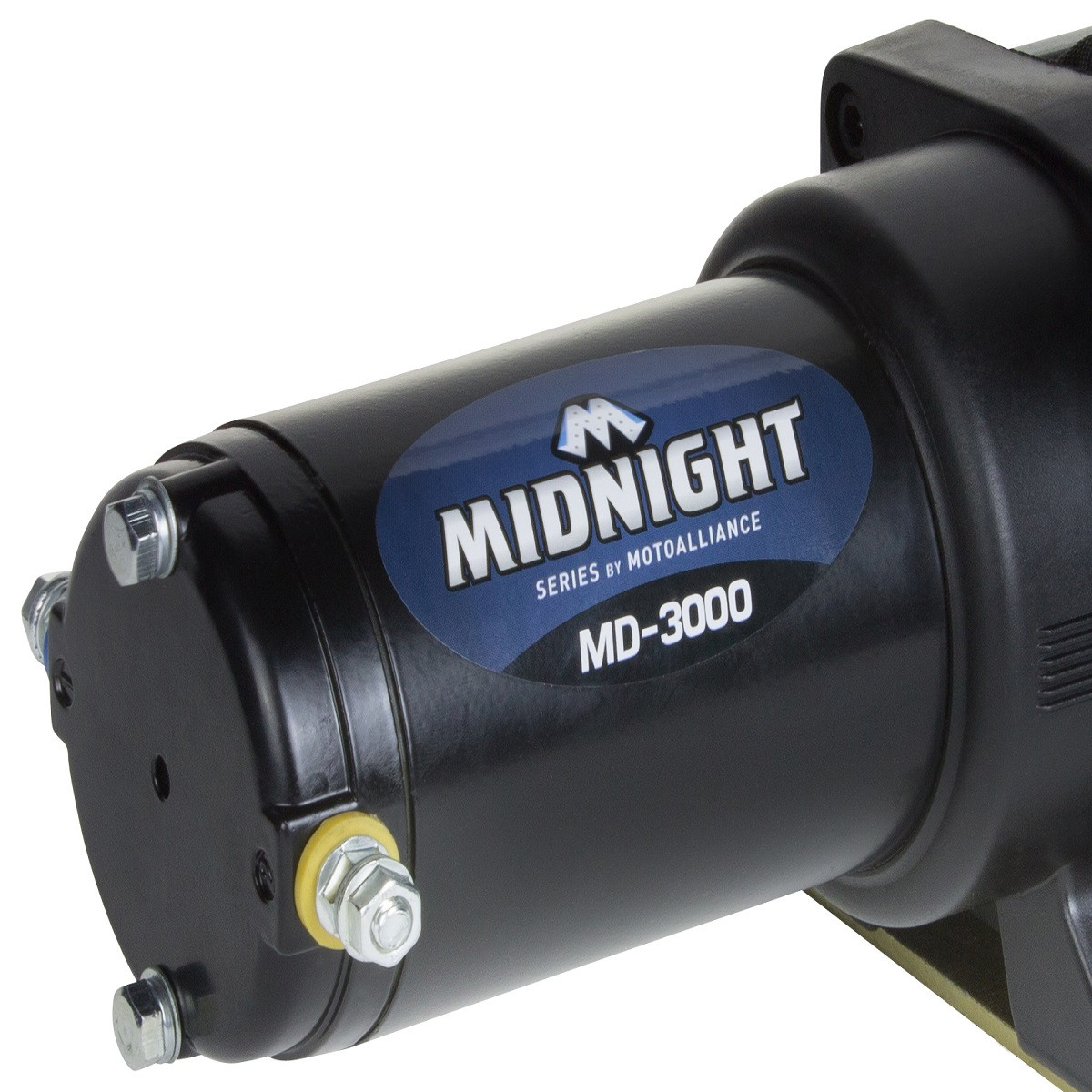

• • Motor - 12V DC, permanent magnet motor
• • Brake - Mechanical load holding and dynamic
• • Gearing - Steel planetary gears
• • Wiring - [8 gauge (English) - 84/.3 (Metric)]
• • Hardware - stainless steel
• • Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123. 83mm)

Ranger Mount Fitment:
MA11900S

• for use with STANDARD SPOOL Winches ONLY
• 2009-2014 Ranger HD
• 2011-2014 Ranger Diesel
• 2009-2010 Full Size Ranger 500 4x4
• 2009          Full Size Ranger 700 4x4
• 2010-2014 Full Size Ranger 800 4x4
• 2010-2014 Full Size Ranger 800 4x4 Crew**
• 2010-2017 Full Size Ranger 800 6x6
• Please Note: will NOT work with the Full Size Ranger XP 900 or Full Size Ranger XP 900 Crew

MA11901-

• 2010-2021 Midsize Ranger EVs
• 2015-2017 Midsize Ranger EXTs
• 2010-2014 Midsize Ranger 400
• 2011-2020 Midsize Ranger 500
• 2011-2013 Midsize Ranger 500 Crew **
• 2014-2021 Midsize Ranger 570
• 2014-2021 Midsize Ranger 570 Crew **
• 2013-2014 Midsize Ranger 800
• 2016-2021 Full Size Ranger 570 (Round Tube Roll Cage)
• 2016-2021 Full Size Ranger 570 Crew (Round Tube Roll Cage) **
• 2011-2014 Full Size Ranger Diesel (900) 4x4
• 2013-2014 Full Size Ranger Diesel (900) 4x4 Crew **
• Please Note: Electric Vehicles with an output voltage of greater than 12 Volts, a voltage transformer system must be implemented prior to using a winch. Failure to do so may result in damage to the battery system and/or winch.

** for optimized installation an Extended Wiring Kit to reach the battery is recommended.

MA11904-

• 2015-2016 Full Size Ranger 570 (Channel Tube Roll Cage)
• 2015-2016 Full Size Ranger 570 Crew (Channel Tube Roll Cage)**
• 2013-2020 Full Size Ranger 900 4x4
• 2014-2020 Full Size Ranger 900 4x4 Crew **
• 2018-2020 Full Size Ranger North Star Edition **
• 2017-2021 Full Size Ranger 1000 XP
• 2017-2021 Full Size Ranger 1000 Crew **
• 2015-2018 Full Size Ranger 1000 Diesel
• 2016-2018 Full Size Ranger 1000 Diesel Crew **
• Please Note: Metal Grill Upgrade is included

** for optimized installation an Extended Wiring Kit to reach the battery is recommended.

MA11907-

• 2002-2008 Ranger 2x4, 4x4
• 2002-2009 Ranger 6x6
• 2004-2006 Ranger TM
• 2005-2008 Ranger XP
• 2008-2009 Ranger Crew
• Please Note: a Universal Fairlead Mount plate is needed, and is included with all VIPER winch kits. If purchasing just this mount plate, the Universal Fairlead Mount Plate will need to also be purchased.

MA11913-

• All Rangers with an Extreme Bumper installed
• Please Note: does NOT fit 2013-2015 Ranger 900 with Extreme Bumpers

Optional Extended Wiring
Two (2), 5 gauge cables, 12' each - this extra length of cable will easily reach batteries that are in the rear of the ATV/UTV.
Please Note: both ends of cables are eyelets

Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" ATV / UTV / SxS. We have many custom mount plates designed to bolt on to your ATV / UTV / SxS.
